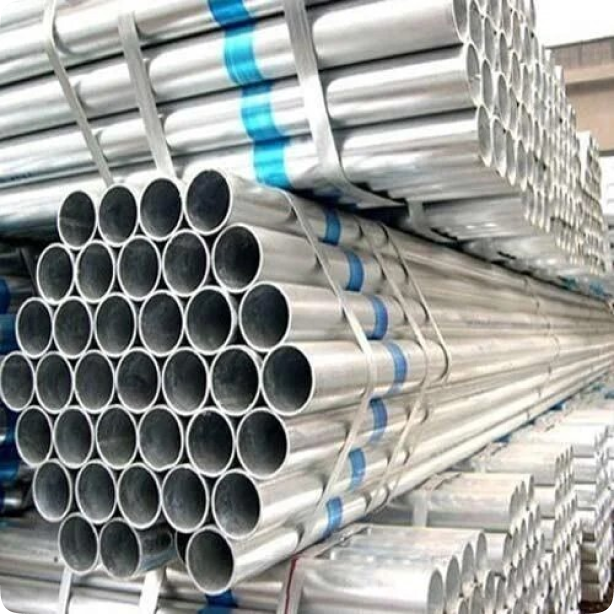

GI Pipes


At Avon Steel, we manufacture high-quality Galvanized Iron (GI) Pipes that are trusted across industries for their strength, durability, and corrosion resistance. Our GI Pipes are produced using advanced ERW (Electric Resistance Welded) technology and undergo a thorough galvanization process, ensuring long-lasting performance even in the most demanding environments.

    Product RANGE:


  • Round: OD 21 mm to 273.1 mm

  • Square Hollow Sections: 16 x 16 mm to 200 x 200 mm

  • Rectangular Hollow Sections (RHS): 26 x 13 mm to 250 x 150 mm

  • Thickness: 1.20 mm to 8.0 mm

  • Length: 3.5 mtr to 7.5 mtr

Manufactured using 5 state-of-the-art high-speed ERW pipe mills, our GI pipes adhere to strict quality standards and specifications to serve a variety of applications across sectors.

Applications of GI Pipes

Our GI Pipes are widely used in the following sectors:

GI Pipes

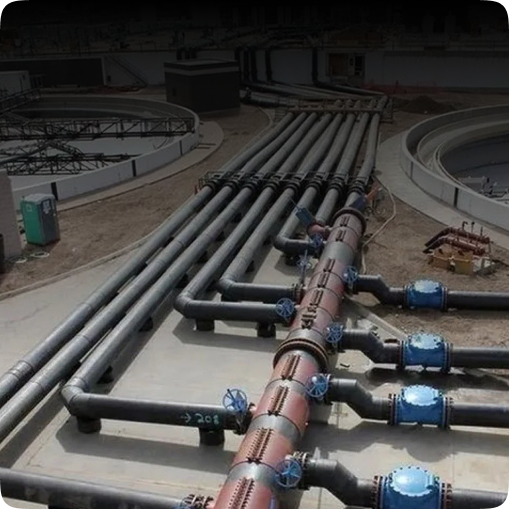

Water Pipeline Systems

Ideal for:

  • Plumbing
  • Water mains
  • Sewerage systems
  • STPs and WTPs
  • Firefighting lines
  • HVAC and industrial water lines
  • Standards: IS:1239, IS:3589, ASTM A 53, JIS G 3444, EN 10255, EN 10217-1, AS:1074, AS/NZS 1163:2016
Hot Rolled Coils

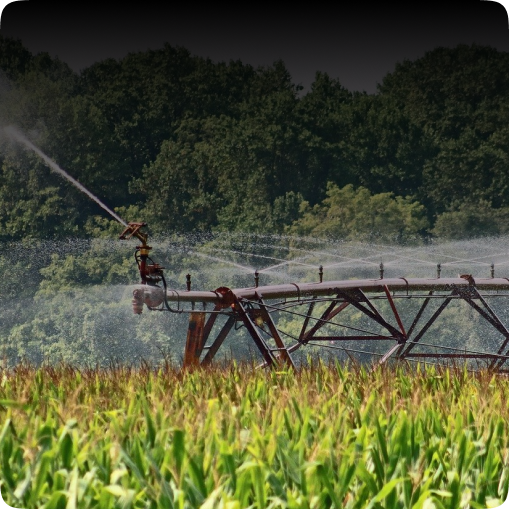

Agriculture & Irrigation
  • Deep tube-wells
  • Casing pipes
  • Standards: IS:4270
Cycle & Heavy Duty Rims

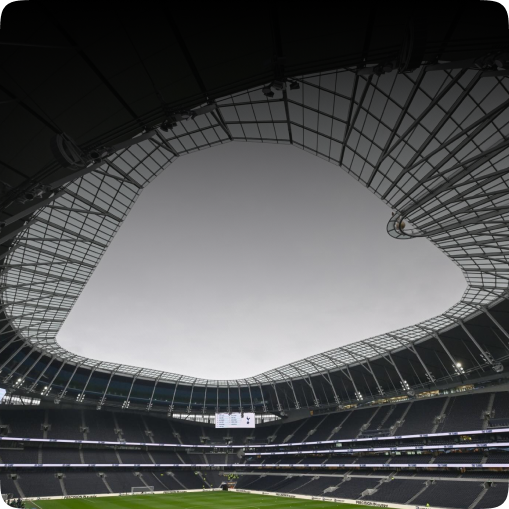

Construction & Infrastructure

Used for:

  • Scaffolding

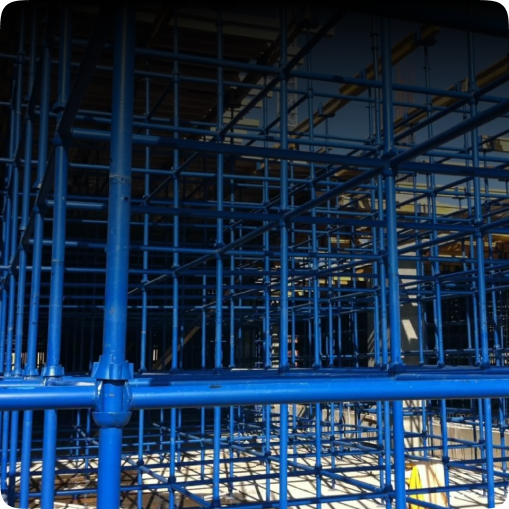

  • Structural purposes
  • Electrical poles
  • Telecom towers
  • Standards: IS:1161, IS:4923, EN 39, EN 10219 (Part 1 & 2), AS/NZS 1163:2016, ASTM A 500
Cycle & Heavy Duty Rims

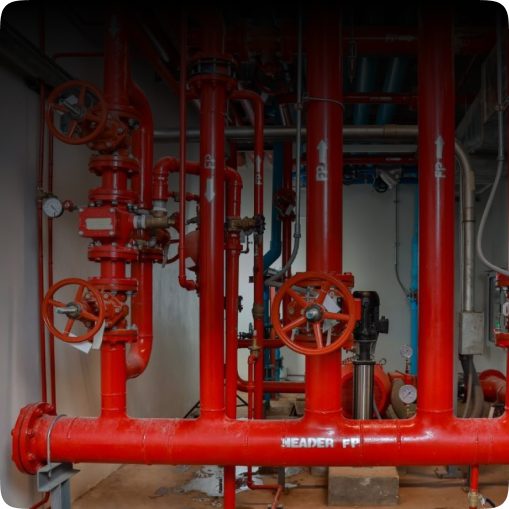

Fire Fighting Systems

Reliable for:

  • Sprinkler pipelines
  • Fire safety infrastructure
  • Standards: ASTM A 53, ASTM A 795, IS:3589, IS:1239
Cycle & Heavy Duty Rims

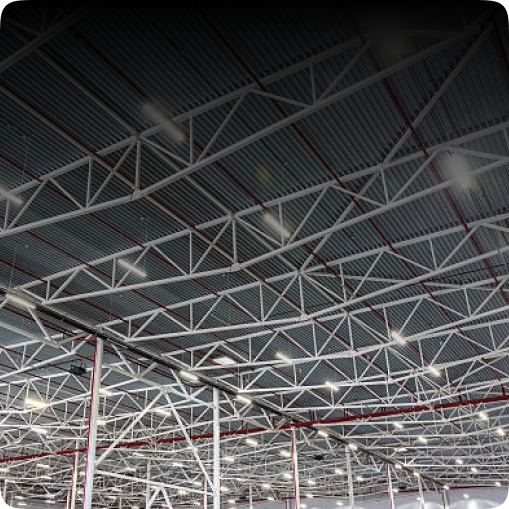

Warehouses, Highways & Industrial Sheds

Preferred in:

  • Structural support for warehouses
  • Highway guard rails and infrastructure
  • Standards: ASTM A500, EN10219, IS 4923, AS/NZS1163, CSA
Cycle & Heavy Duty Rims
Miscellaneous Applications
  • Exhaust piping
  • Cold storage structures
  • LPG cylinder rings
  • Conveyor idlers
  • HVAC systems
  • Standards: IS:1239, IS:9295, IS:1161, IS:2713:1980

Why Choose Avon Steel GI Pipes?

Corrosion resistant galvanized coating

Manufactured with precision using advanced ERW technology

Wide size range to meet varied industry needs

Adherence to multiple Indian and international standards

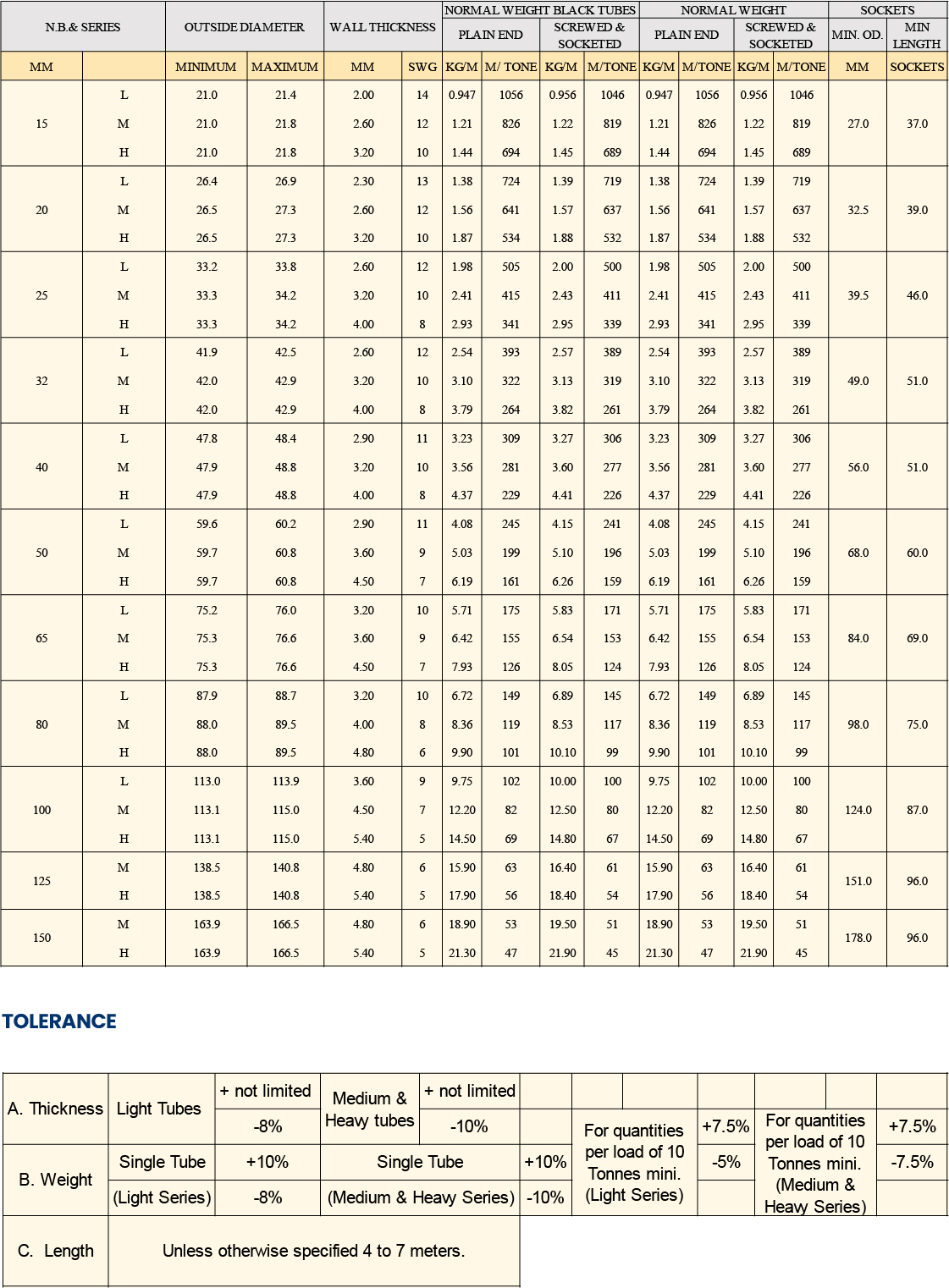

ERW STEEL TUBES FOR ORDINARY USES IN WATER, GAS AND AIR LINES CONFORMING TO IS 1239 (PART-1): 2004 CORRESPONDENSE TO BS 1387/ 1985

Click to expand
Hot Rolled Coils

ERW STEEL TUBES FOR MECHANICAL &GENERAL ENGINEERING PURPOSE IS 3601 :2006

Click to expand
IS 10748 Grades

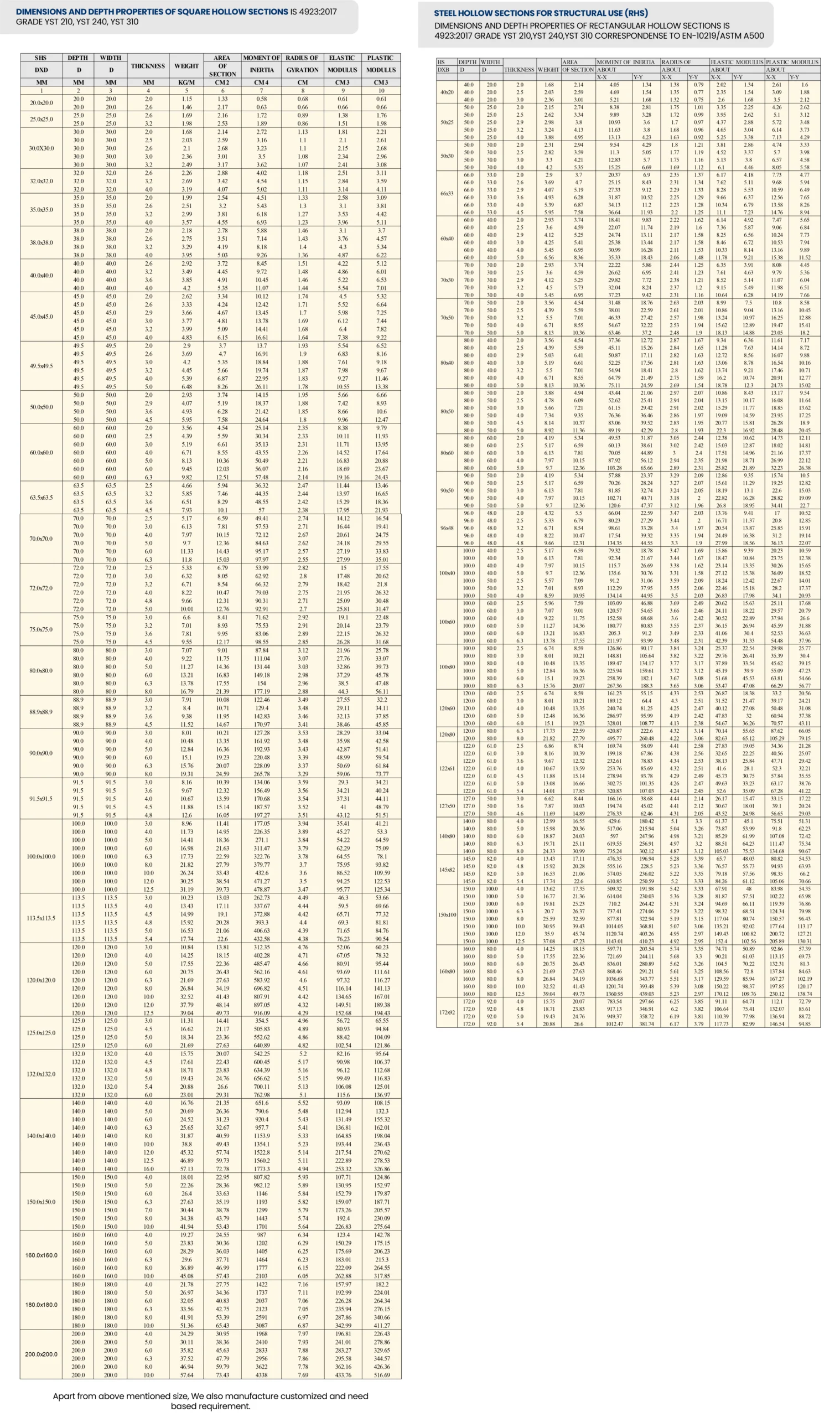

DIMENSIONS AND DEPTH PROPERTIES OF SQUARE HOLLOW SECTIONS IS 4923:2017 GRADE YST 210, YST 240, YST 310

Click to expand
IS 10748 Grades

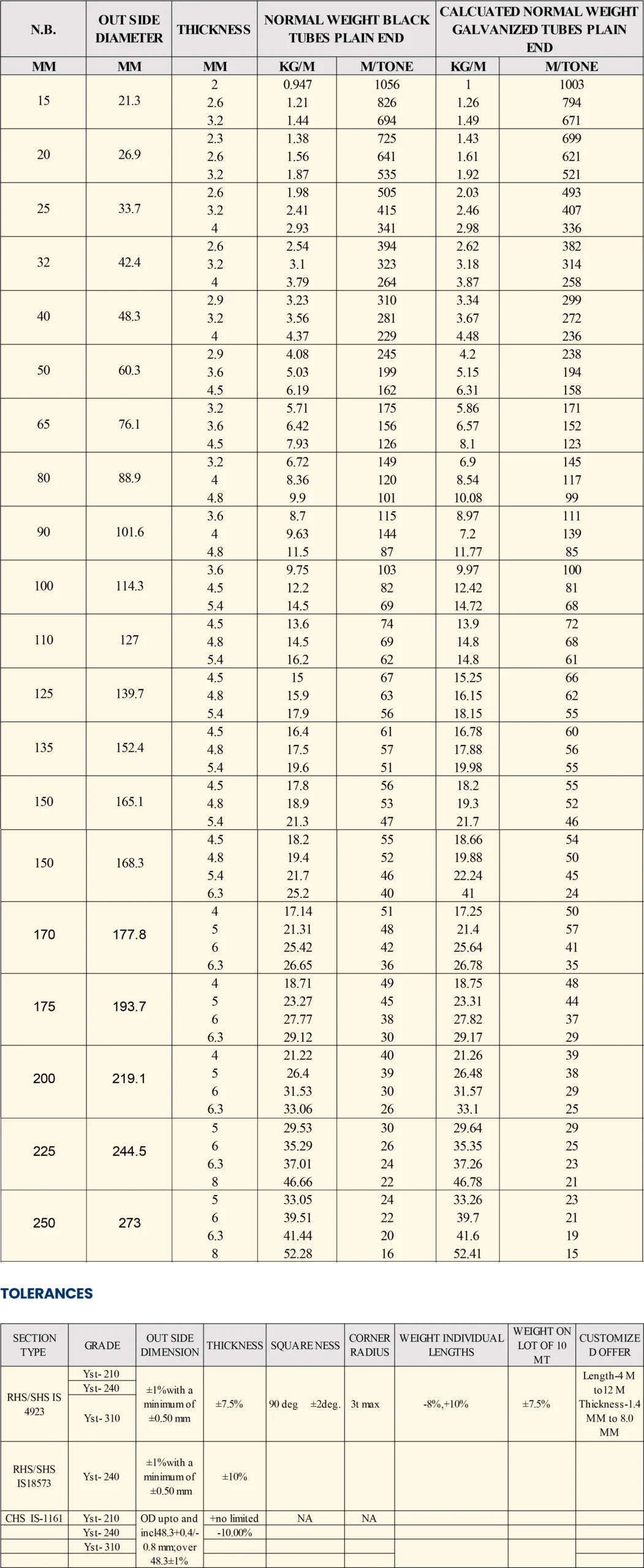

STEEL TUBES FOR STRUCTURAL PURPOSES CONFORMING TO IS 1161 :2014

Click to expand

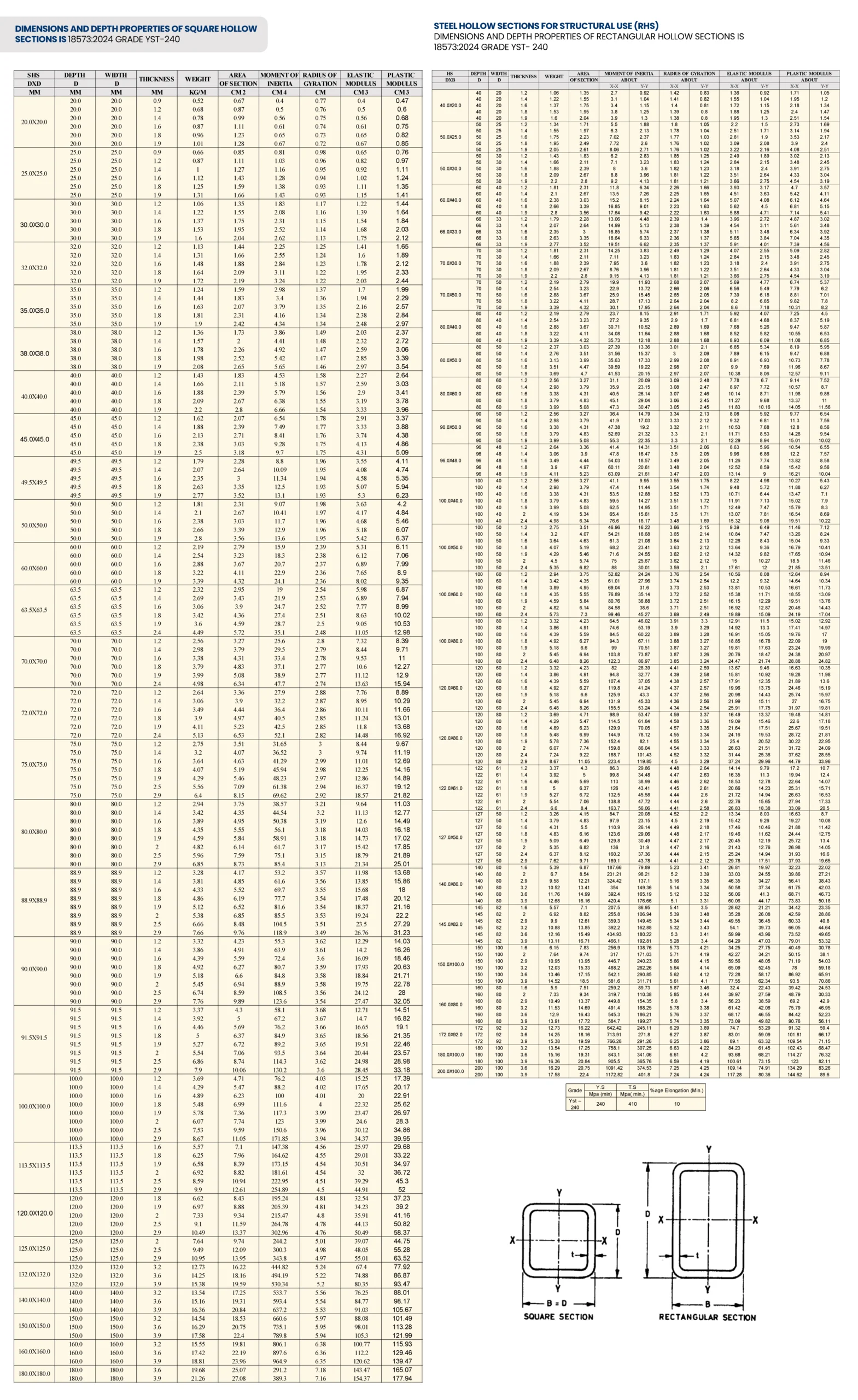

DIMENSIONS AND DEPTH PROPERTIES OF SQUARE HOLLOW SECTIONS IS 18573:2024 GRADE YST-240

Click to expand
IS 10748 Grades

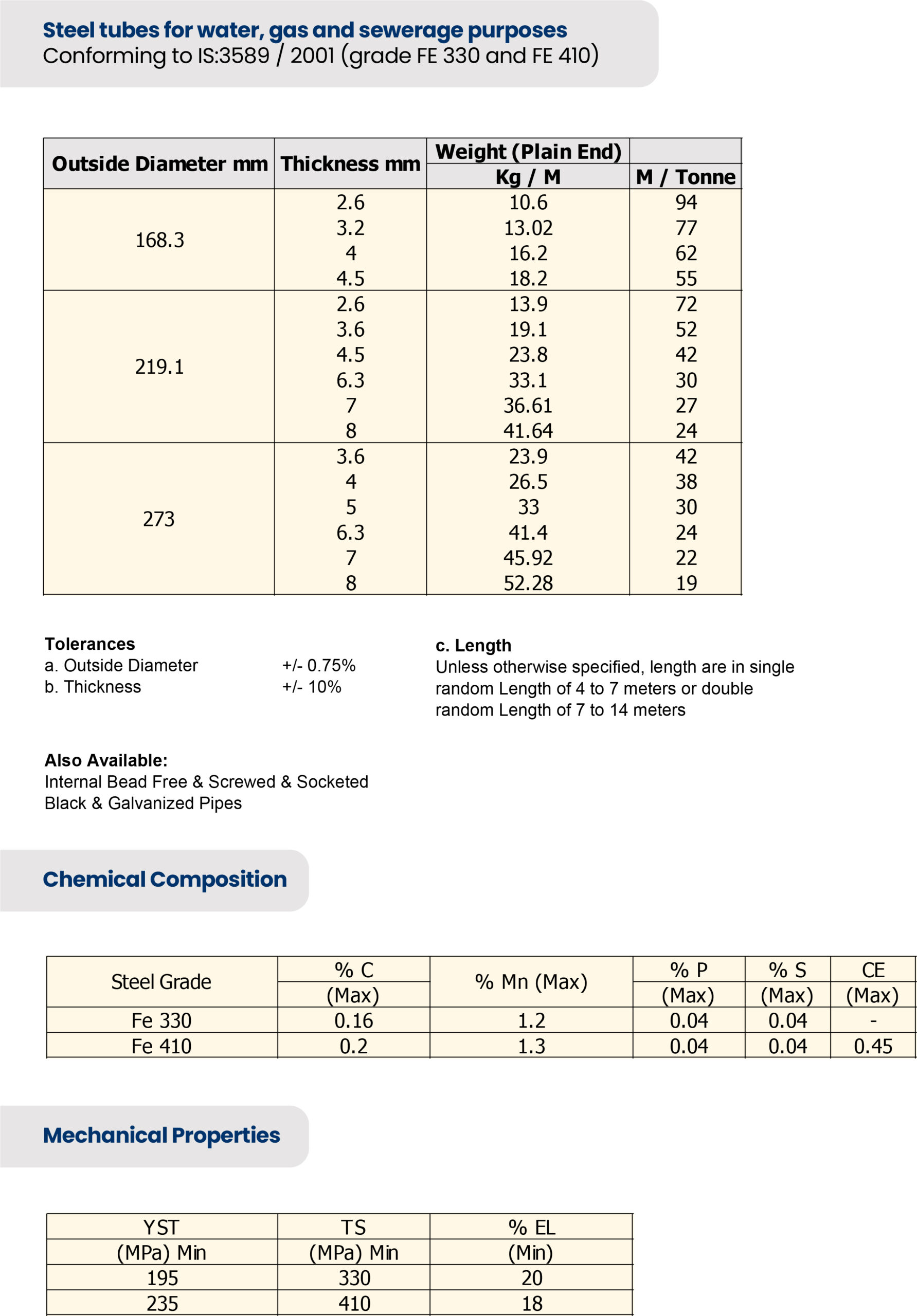

Steel tubes for water, gas and sewerage purposes

Click to expand

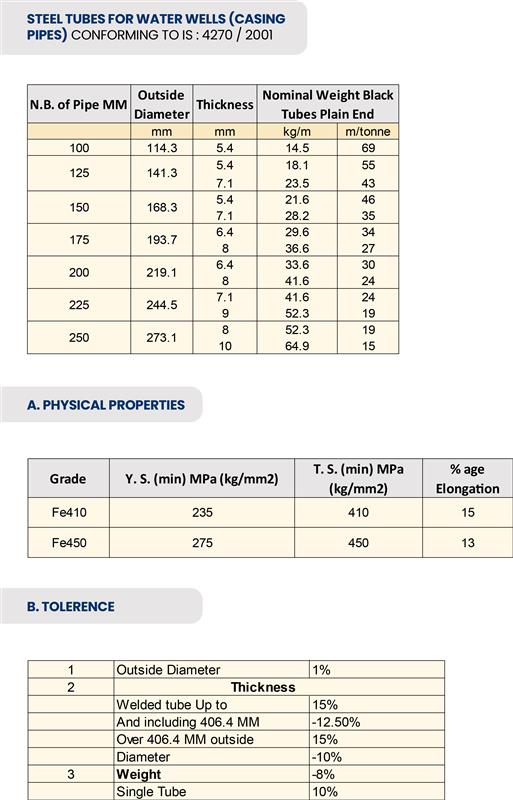

Steel tubes for water wells (casing pipes)

Click to expand
IS 10748 Grades

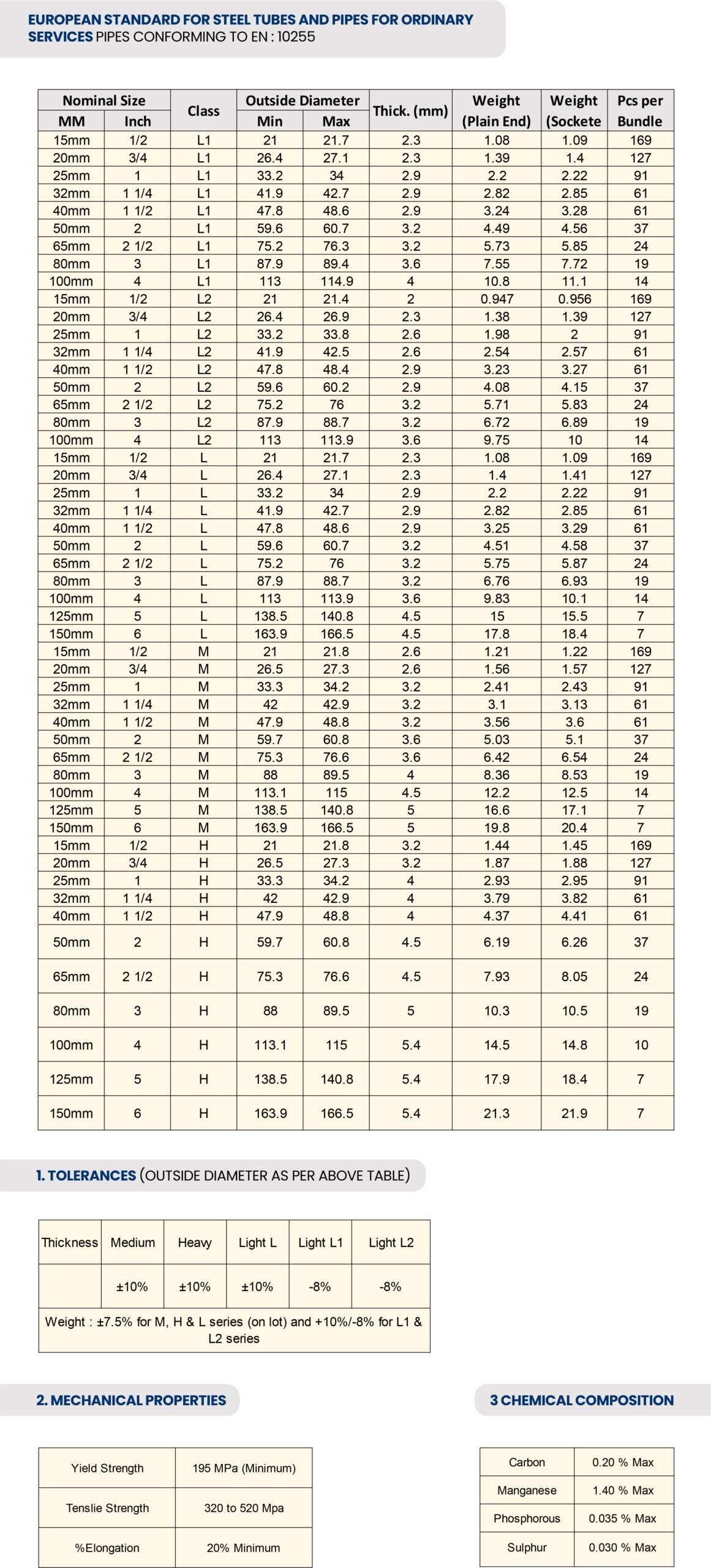

European Standard for Steel Tubes and Pipes for Ordinary Services

Click to expand
IS 10748 Grades

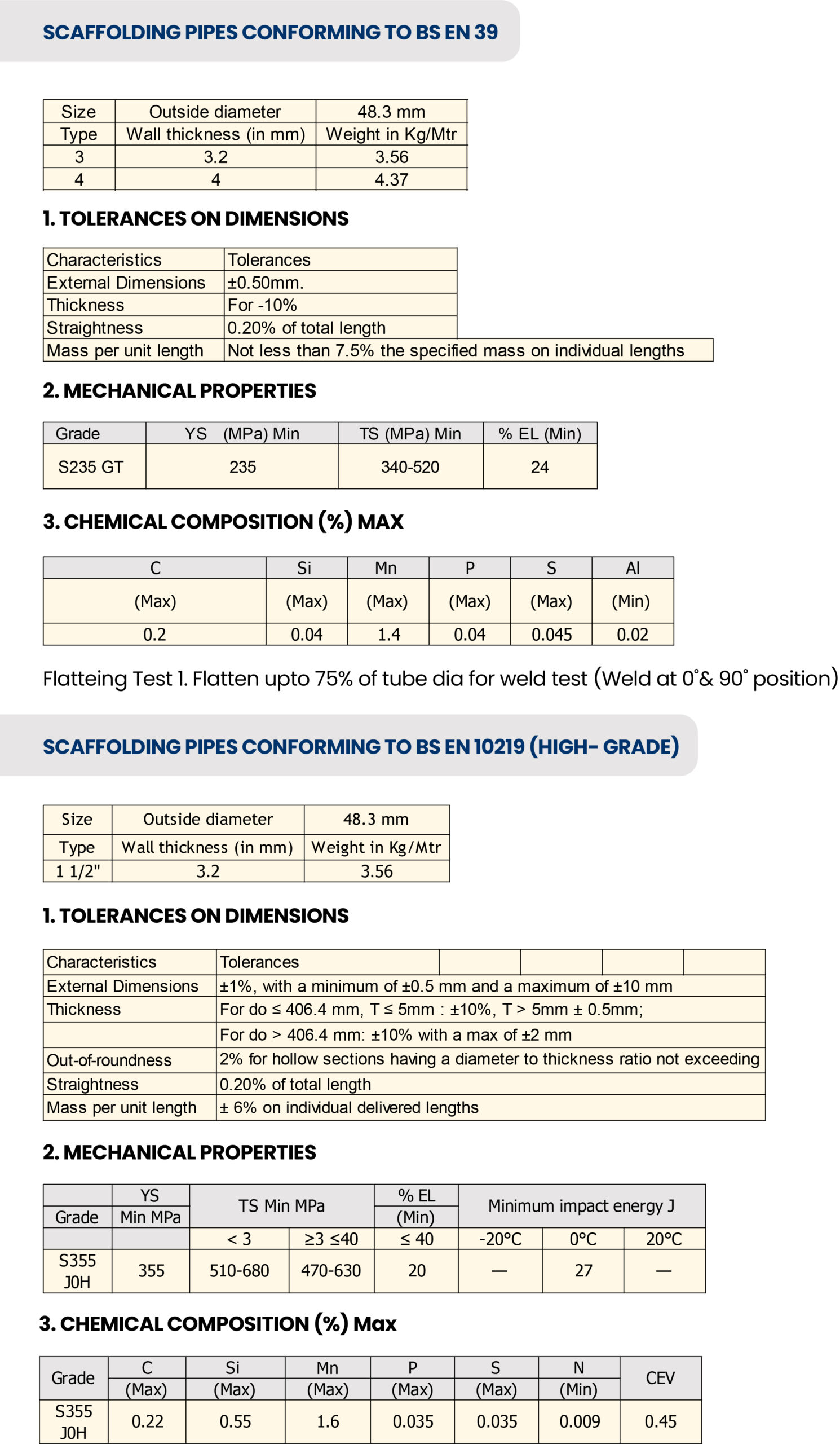

Scaffolding Pipes Conforming to BS EN 39

Click to expand
IS 10748 Grades

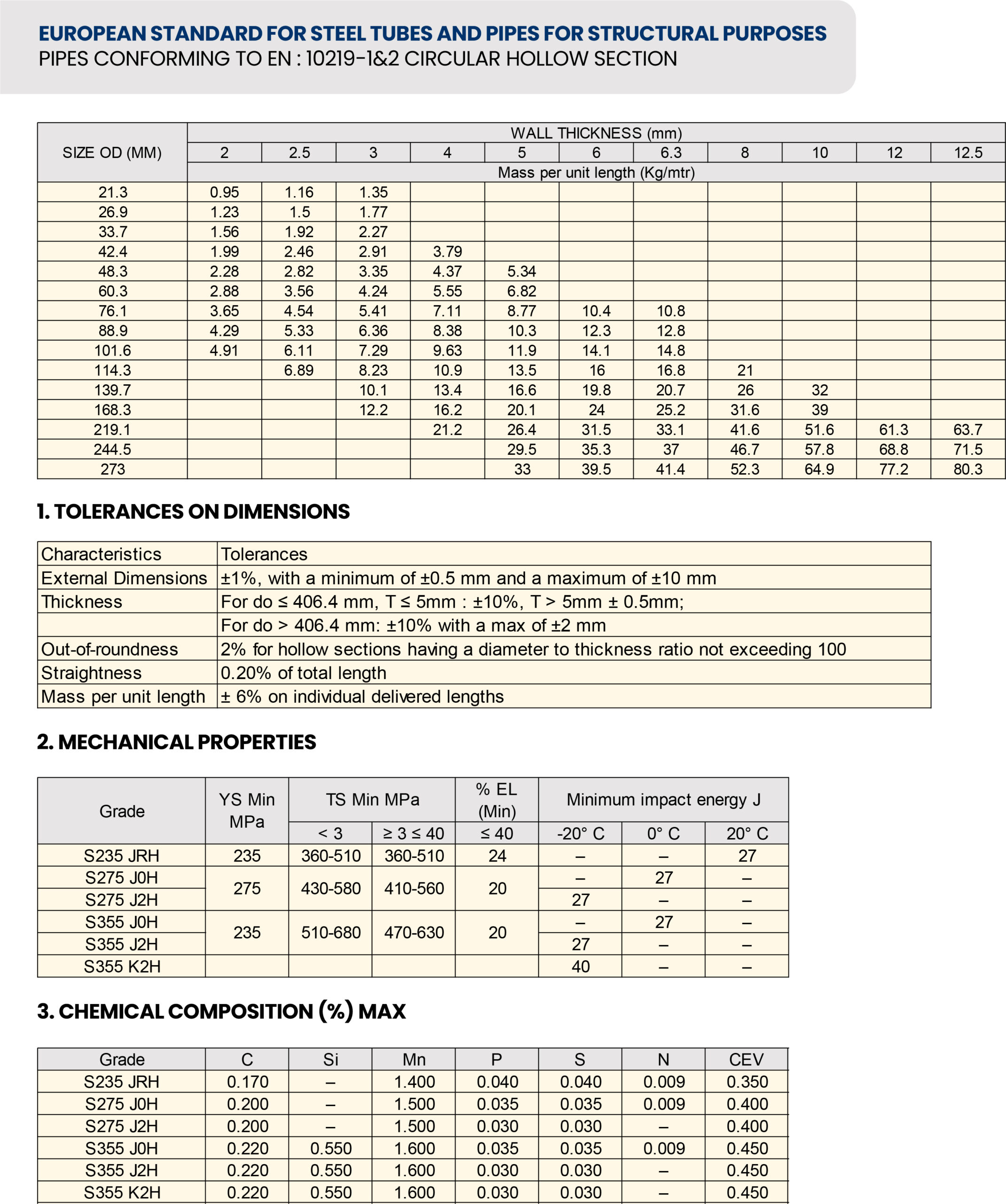

European Standard for Steel Tubes and Pipes for Structural Purposes

Click to expand
IS 10748 Grades

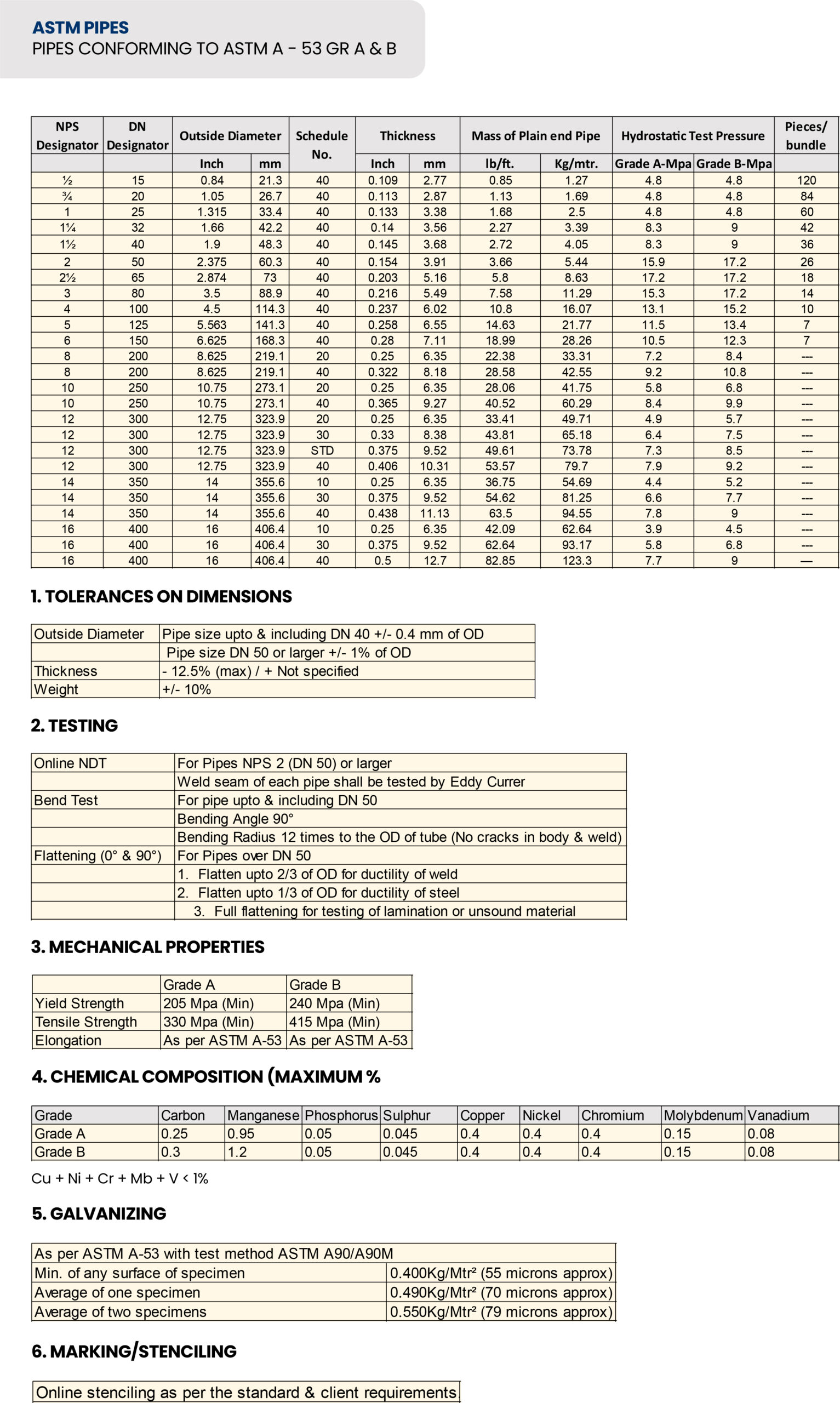

ASTM Pipes

Click to expand

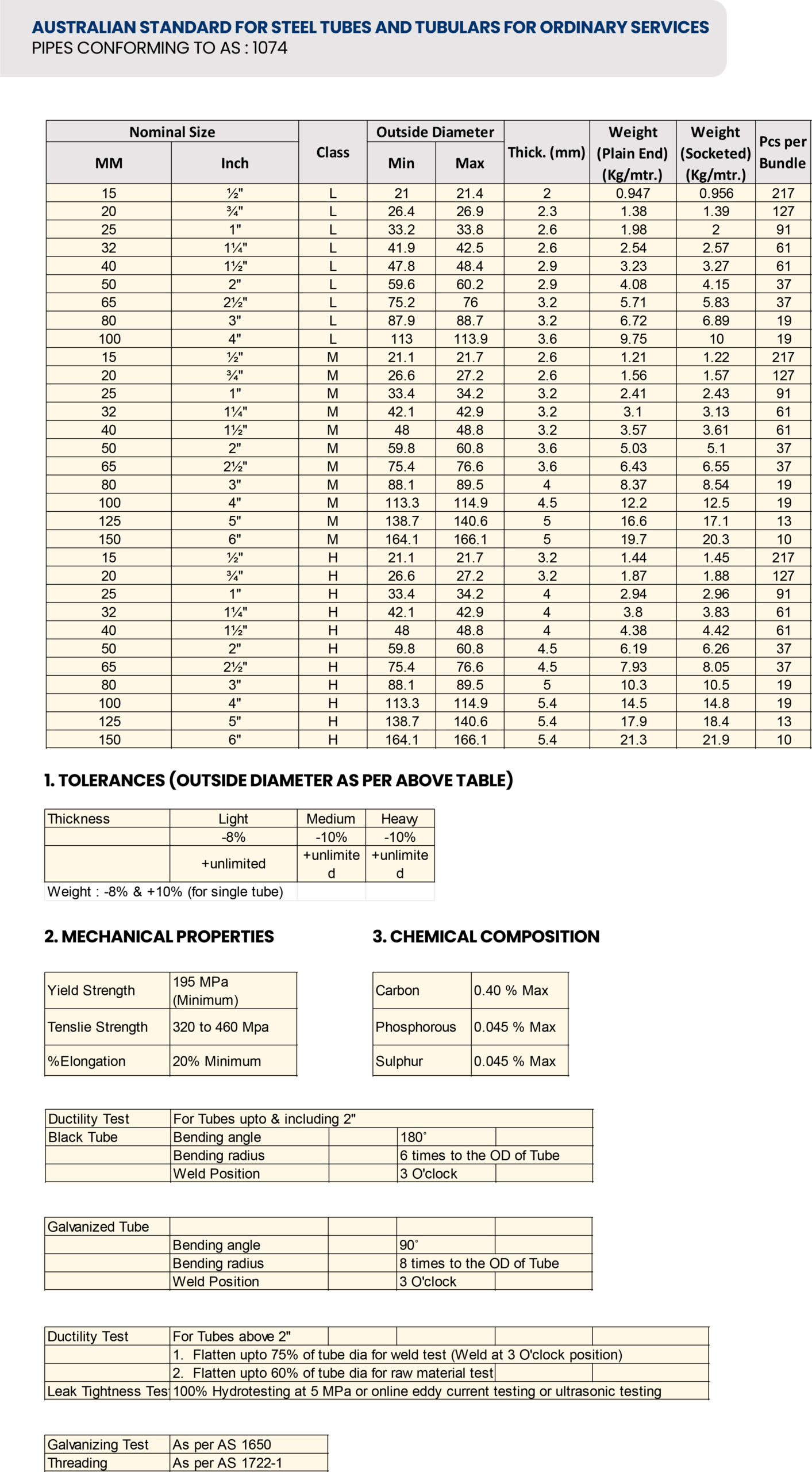

Australian Standard for Steel Tubes and Tubulars for Ordinary Services

Click to expand

Built for reliability and efficiency, Avon Steel’s ERW Steel Tubes offer unmatched quality for diverse industries. Contact us today to explore our range!

×
